T901-01-4
- Brand:tavis
- Unit price:Negotiable
- Minimum order quantity:-
- Total Supply:-
- Delivery period:Shipment within 3 days from the date of payment by the buyer
Hotline
+86 13586176000
PRODUCT DETAILS
黄铜内螺纹燃气球阀

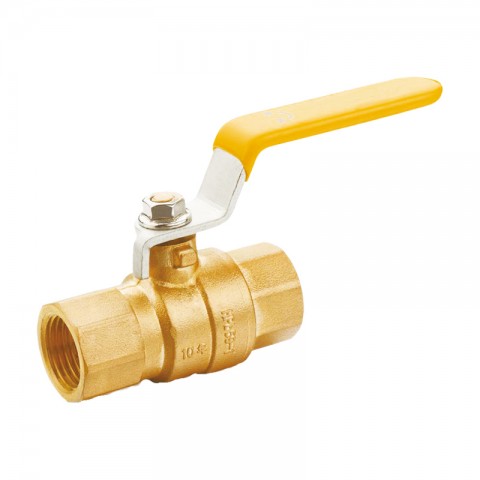

Gas Ball Valve FF(RQL-PN16)
技术规范
公称压力: 1.6MPa
工作介质：天然气、人工煤气、液化石油气
工作温度：-20° C ≤ t ≤ 110° C
圆锥管螺纹符合ISO7 标准
圆柱管螺纹符合ISO228 标准
TTechnical Standard
Nominal Pressu:1.6MPa
Working Medium: Natural Gas,Artificial Gas,Liquefied Petroleum Gas
Working Temperature: -20℃≤ t ≤ 110℃
Taper Pipe Thread to ISO7
Parallel Pipe Thread to ISO228

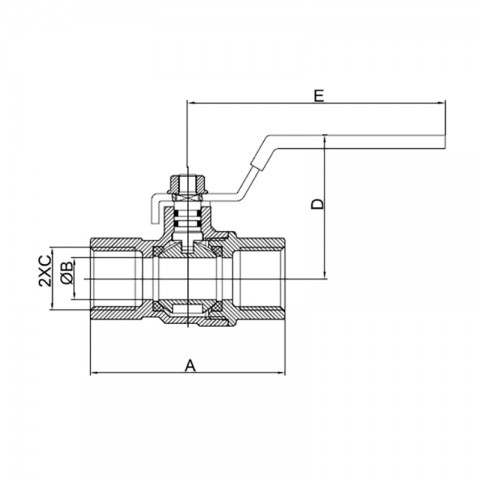

| DN | A | B | C | D | E |
| 40 | 106 | 38 | RP11/2 | 76 | 156 |
密封件选用M111/ 日本大金材料
O 型圈选用意大利NBR 材料，符合EN682 标准
